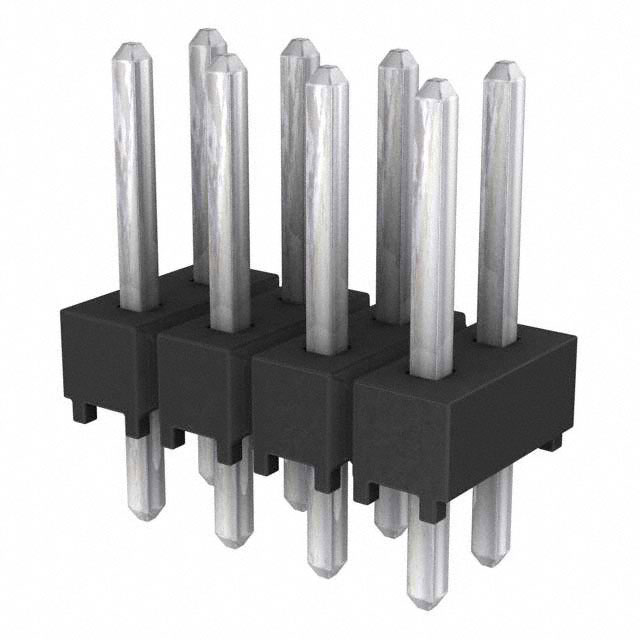

| TYPE | DESCRIPTION |
| Mfr | Samtec, Inc. |
| Series | TSW |
| Package | Bulk |
| Product Status | ACTIVE |
| Connector Type | Header |
| Mounting Type | Through Hole |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Style | Board to Board or Cable |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.100" (2.54mm) |
| Insulation Height | 0.100" (2.54mm) |
| Shrouding | Unshrouded |
| Overall Contact Length | 0.430" (10.92mm) |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Length - Mating | 0.230" (5.84mm) |
