Please send an inquiry and we will respond immediately.
| TYPE | DESCRIPTION |
| Mfr | Intersil (Renesas Electronics Corporation) |
| Series | - |
| Package | Tube |
| Product Status | OBSOLETE |

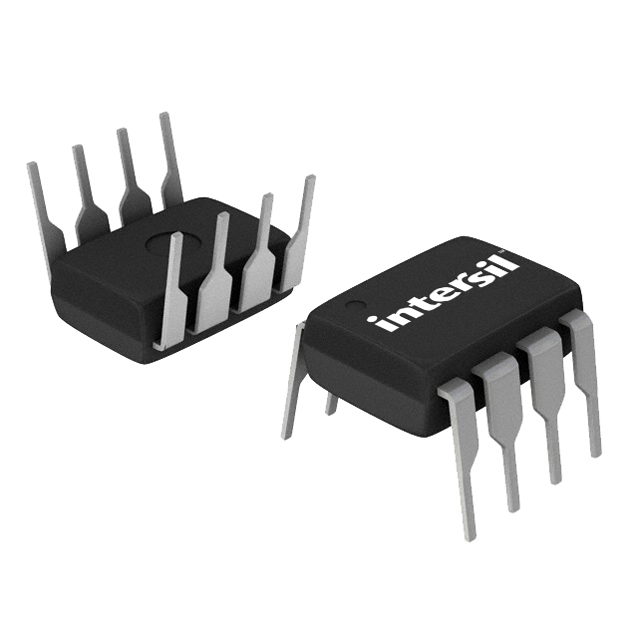

| Package / Case | 8-DIP (0.300", 7.62mm) |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Function | Ratiometric |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Output Configuration | Positive or Negative |
| Frequency - Switching | 10kHz |
| Voltage - Input (Max) | 20V |
| Topology | Charge Pump |
| Supplier Device Package | 8-PDIP |
| Synchronous Rectifier | No |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output (Min/Fixed) | -Vin, 2Vin |
