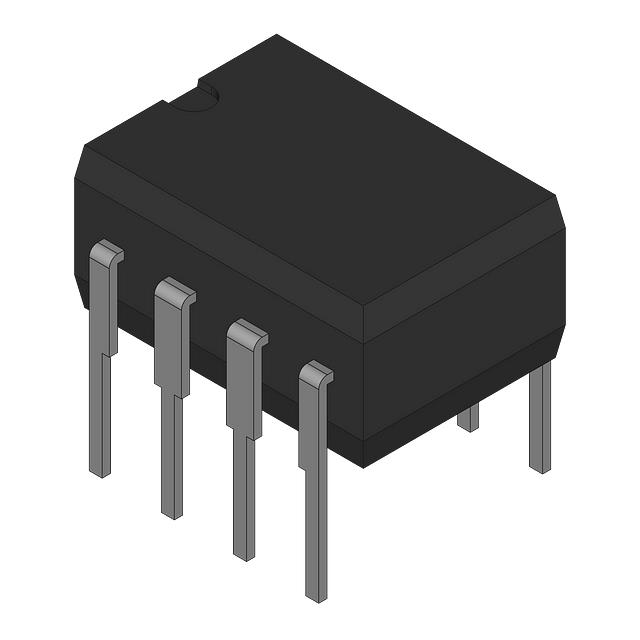

FOD3120SV

Part number

FOD3120SV

Product Categories

Isolators - Gate Drivers

Manufacturer

Fairchild Semiconductor

Describe

OPTOISO 5KV 1CH GATE DVR 8SMD

Encapsulation

Package

Bulk

ROHS status

Price

USD

Data sheet

Quantity

RFQ

Specification

Transport

Data sheet

TYPE	DESCRIPTION
Mfr	Fairchild Semiconductor
Series	-
Package	Bulk
Product Status	ACTIVE
Package / Case	8-SMD, Gull Wing
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 100°C
Voltage - Forward (Vf) (Typ)	1.5V
Current - Peak Output	3A
Technology	Optical Coupling
Current - Output High, Low	2A, 2A
Voltage - Isolation	5000Vrms
Approval Agency	IEC, UL
Supplier Device Package	8-SMD
Rise / Fall Time (Typ)	60ns, 60ns
Common Mode Transient Immunity (Min)	35kV/µs
Propagation Delay tpLH / tpHL (Max)	400ns, 400ns
Pulse Width Distortion (Max)	100ns
Number of Channels	1
Current - DC Forward (If) (Max)	25 mA
Voltage - Output Supply	15V ~ 30V
